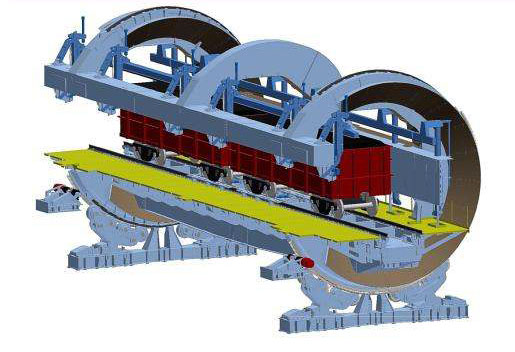

Tandem Rotary Wagon Tippler
| Designed & engineered in accordance with : | Rdso guidelines for wagon tipplers g33 Bs en 13001 – crane design |
| Capacity : | 2 x 140 Tonne wagons |
| Time to time & return : | 48 seconds (up to 30 seconds) |
| Power rating : | 2 x 75 kw (Based on 48 second operation) |
| Angle of tip : | 170 degrees (nominal) |
| Wagons dimensions / range : | Length 14.083 m – 10.713 m Height 4.000 m – 2.293 m Width 3.660 m – 3.130 m |
| System throughput : | Minimum 50 wagons per hour (Paired with suitable train moving equipment) |
| Rotating mass : | 264 Tonnes |
| Design life : | > 2 x 106 Cycles |

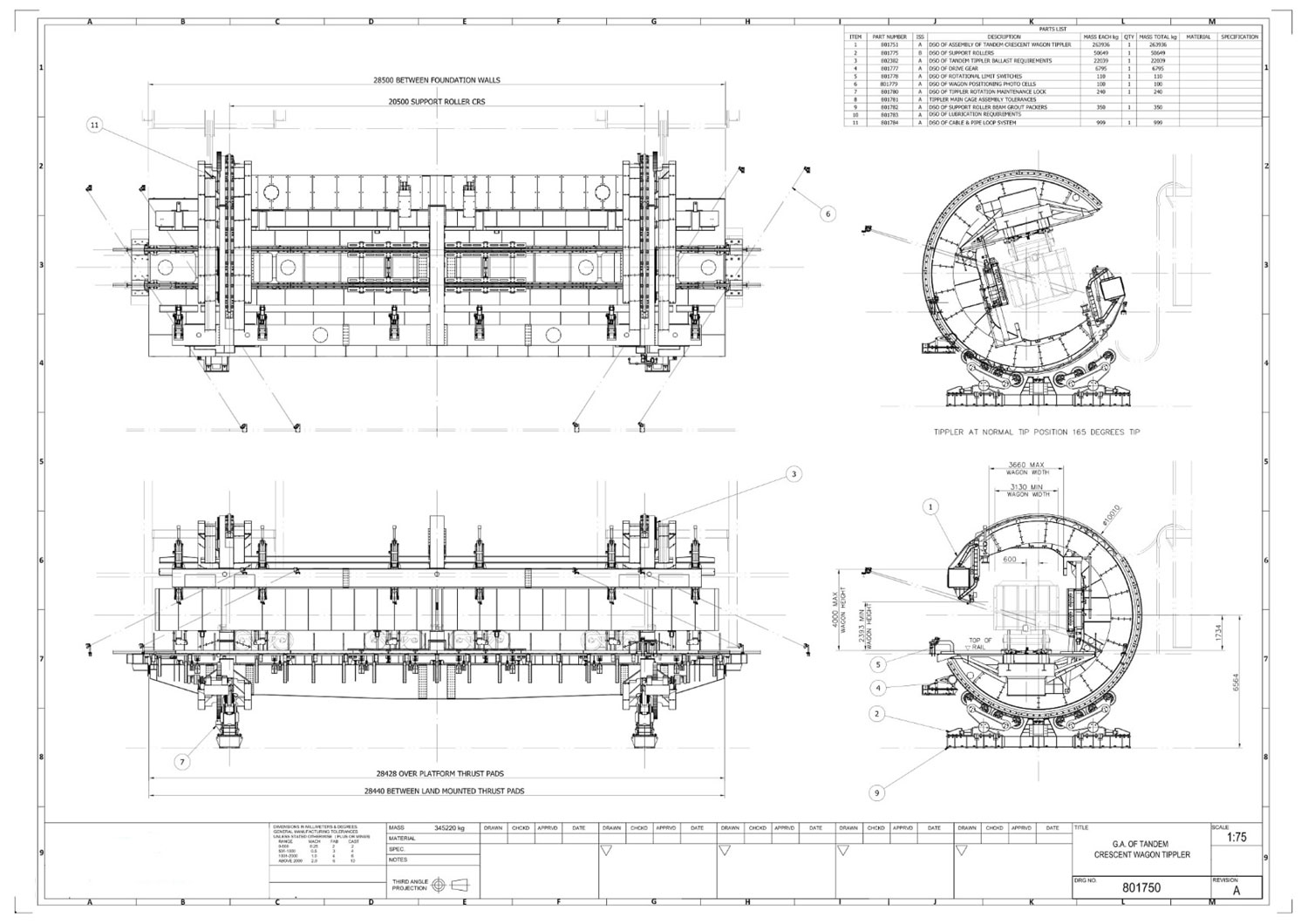

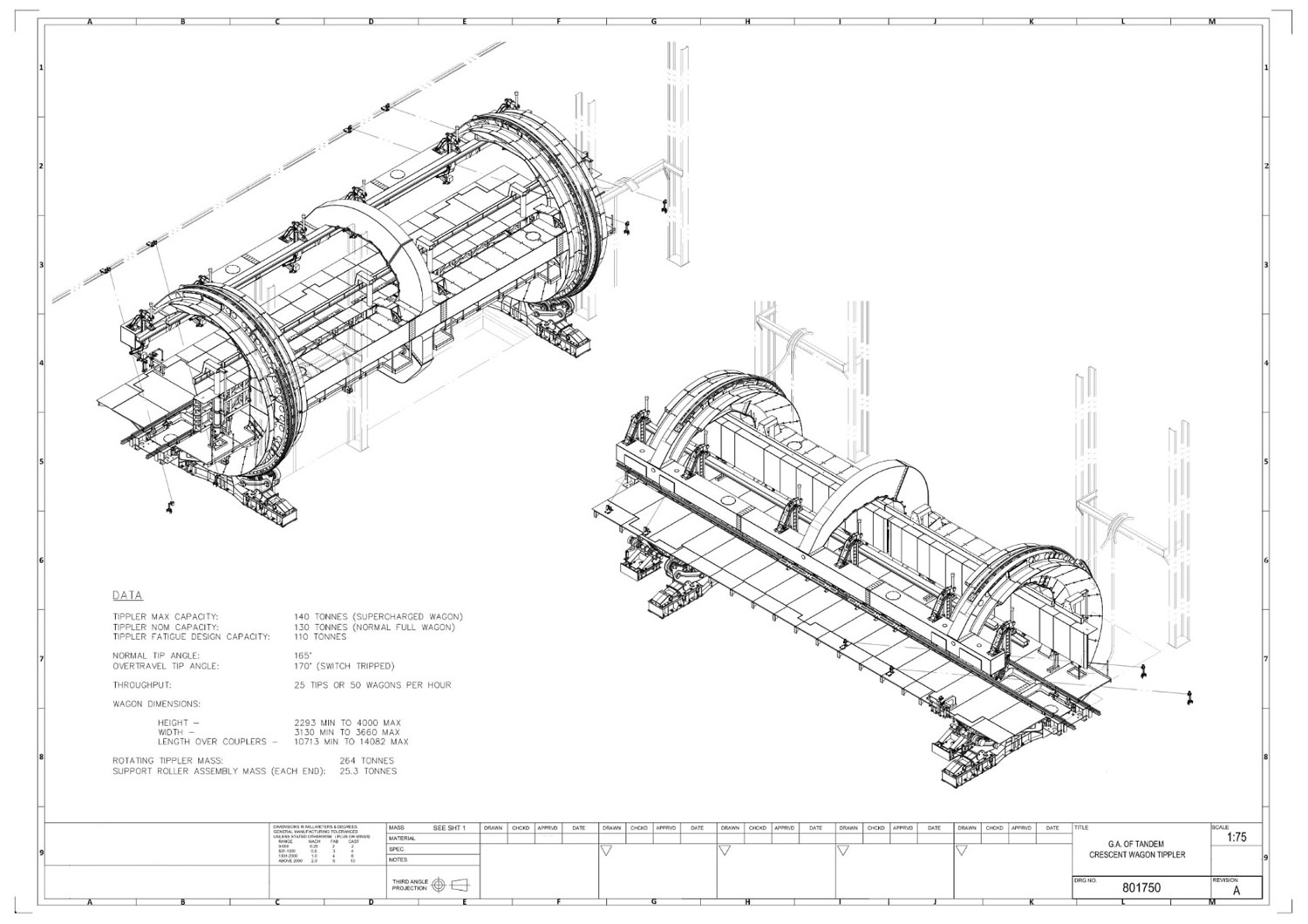

General Arrangement of Wagon Tippler

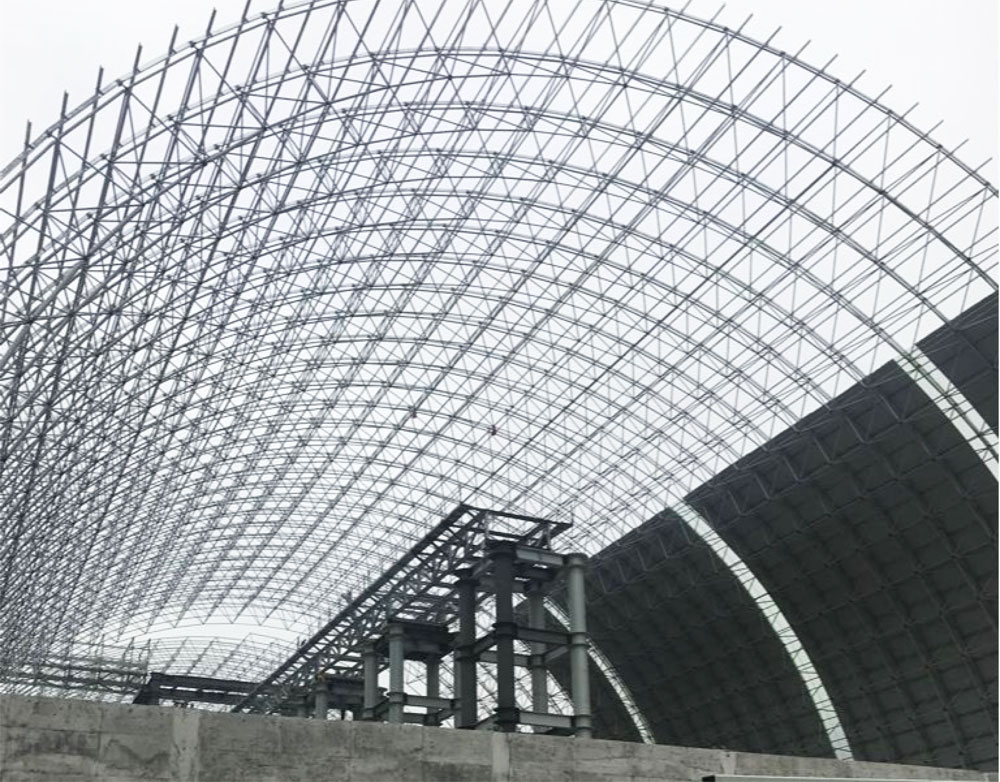

Coal Yard Shed
